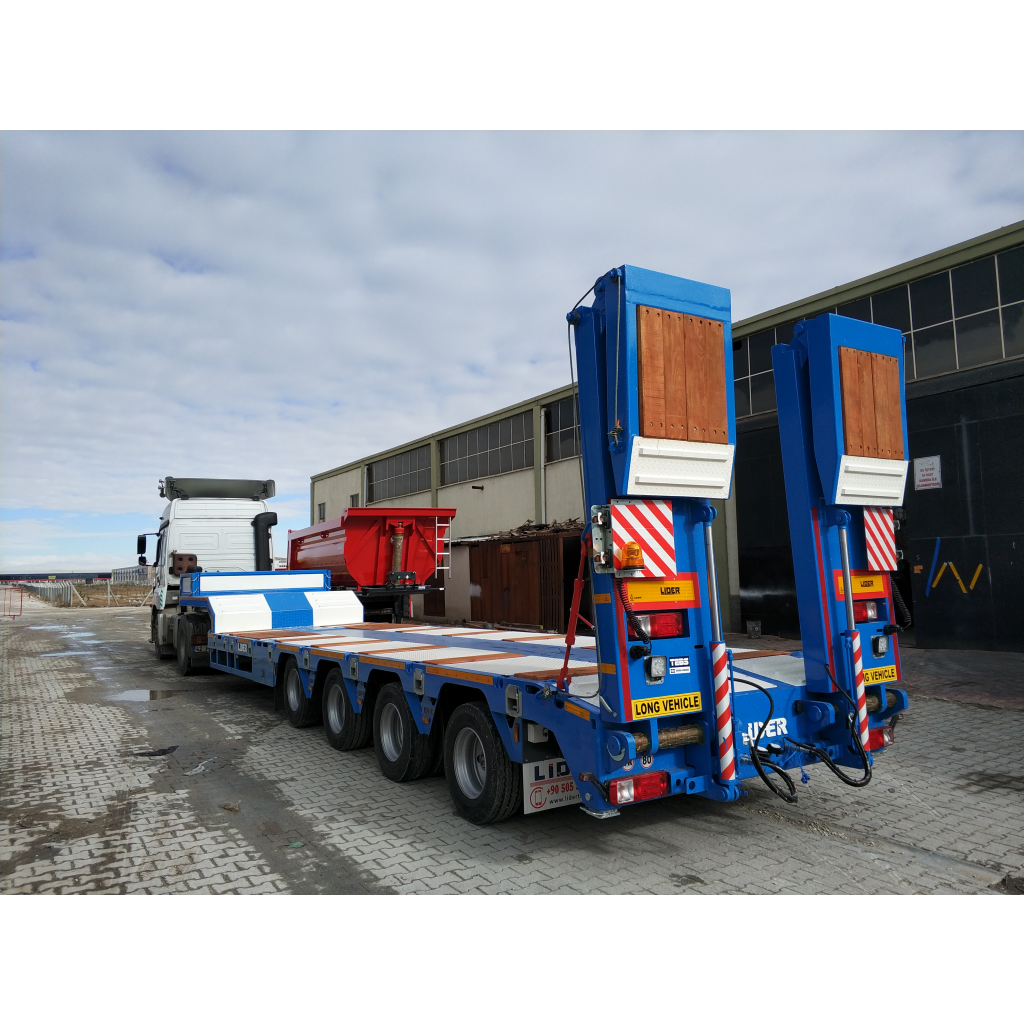

4 axle LOWBED TRAİLERS
Lider Trailer for manufacture all types of trailers and semi trailers in Turkey
Among our products is 4 axle Lowbed semi trailers .
We are ready for manuıfacture this trailers as per to customers request with high quality and best porice .
Lowbed semi trailers is used for transport all types of special machinery and other heavy haulage .
inşaat üretim makineleri taşınmasında
- mining machinery
- heavy haulage
- heavy machinery (70 ton )
- agricultra machinerys
- special productions machinery
- special types machinery
Also we have get a EUROPEAN quality certificate on our Lowbed semi trailers .
The specifications for 3 axle Lolwbed semi trailers ( according to EUROPEAN standards ) ,
If you want to see our 5 axle lowbed semi trailers please visite our 5axle lowbed trailers tab
LOWBED TECHNICAL INFORMATION
- Fifth whell Height (H5) : 1280 mm
- External Length : 13.600 mm
- Axle Capacity : 12 ton Technical load capacity (11 ton legal load capacity)
- Gooseneck Length (GL) : 3.660 mm
- Platform Length (PL) : : 9.520 mm
- Platform Height (PH) : 940 mm
- Wheelbase (WB) : 8.160 mm
- Distance Between Axles(W1) : 1.350 mm
- Loading capacity : 70.000 kgs
- Tare Weight ±%3 : 13.500 kgs
- Total Width (W) : 2.550 mm + 600 mm (w / side extensions)
- King Pin Capacity : Permissible Load Capacity = 18.000 kg
- Sliding Platform : 1 unit of non-removable sliding platform 300 mm long
- Gross Vehicle Weight : Total Permissible Weight [60 km/h] = =84.000 kgs
- Gross Vehicle Weight : Total Permissible Weight [80 km/h] = 78.500 kgs
LOWBED RUNNING GEAR
- Number Of : 3 Units
- Axles Steering : 2 units of fixed axles at the front, 2 units of self steering axles at the rear
- Type Axles : Lider 1453 drum broke axles
- Brake System: Dual circuit electro-pneumatic WABCO brand EBS 4S/3M brake system with anti- lock (ABS) and tilt control system (RSS) in compliance with Regulation UN ECE R13
- Electric System : Lighting installation with 24 V LED side position lamp and 2x7 and 1x15-pin sockets, in compliance with Regulation UN ECE R48 and A DR Legislation
- Rear Lamp Type : Front position lamp, left and right side parking lamps, operation lamp and extension label warning lamps on the vehicle are LED-Typ e , whereas rear underrun bumper lamps are Bulb-Type
- Rim Brand :Lider Choice
- Rim Type :Lider choice, steel offset rim
- Tyre Size : 235/70 R 17,5
- Tyre Brand : Pirelli Choice
- Number of Tyres and : 12 Units
- Rims Spare Wheel Holder : 1 units of spare wheels on front panel (optional)
- Suspansion Type : Air suspension
- Connection Sockets :Socket with lid according to Norm VG-96917 and 2x35 mm2 straight connection cable with battery pincers according to Norm VG-96927-1 2
LOWBED CHASSIS
- Chassis : Made of high quality and high strength ST52 and S700 MC steel, in compliance with Standard ISO 1726
- Gooseneck Type : Gooseneck with 90° vertical corners
- Floor : 45 mm thick hardwood floor and drop-patterned steel floor only on top of wheels
- Extension Bracket : Standard box profile
- King Pin : 2" bolted kingpin
- King Pin Place And Quantity : 1 unit of kingpin coupling seam
- Front Landing Gear : Sliding mechanical landing gears with 50 ton capacity when parked
- Rear Landing : Sliding mechanical landing gears with 45 ton capacity when parked
- Gear Metalization : Not Available
LOWBED RAMP
- Ramp Type : 2 units of short mechanical ramps are included. Suitable for hydraulic folding and mechanical sliding operations, has hardwood covering with 4 0 m m thickness, 3,500 mm length and 800 mm width, 12 degrees of ramp angle, load capacity is 40,000 kg and 3,200 mm height in closed position
- Rear Ramp Safety : Ramp safety tensioner chain
LOWBED LOAD SECURING
- Lashing Rings : Lashing rings; on the gooseneck is 6 tonnes capacity 3 x 2 units; on the platform 6 tonnes capacity 4 x 2 units; on the side rave 6 tonnes capacity 9 x 2 units mounted.
- Gooseneck Panels : 1 unit of steel side panel with dimensions 450 mm x 2,550 mm, 2 units of aluminium side panels with dimensions 360 mm x 1,500 mm, 1 unit of steel aluminium rear panel with dimensions 360 mm x 2,550 mm
- Extension : Extension brackets; galvanized steel, 11 x 2 units of 300mm extendable with 100mm intervals or 230 mm extendable in single action i s mounted
- Bracket Pillars : ( optional )
LOWBED ACCESSORIES
- Toolbox : 1 unit of double-doos steel steel toolbox with dimensions 750 x 400 x 360 mm (h x d x w)
- Flashing Beacon Light : 1 units of flashing beacon light
- Extension Label Bracket : 2 x 2 units of 423 mm. x 423 mm. Extension Warning Plates with 2 LED position lights + 1 unit of Rear Flashing BeaconLight Socket
- Extension board storage cabine : ( optional )
- Electric loading crane : ( optional )
LOWBED COLOURS
- Chassis Color : costumer request RAL code
