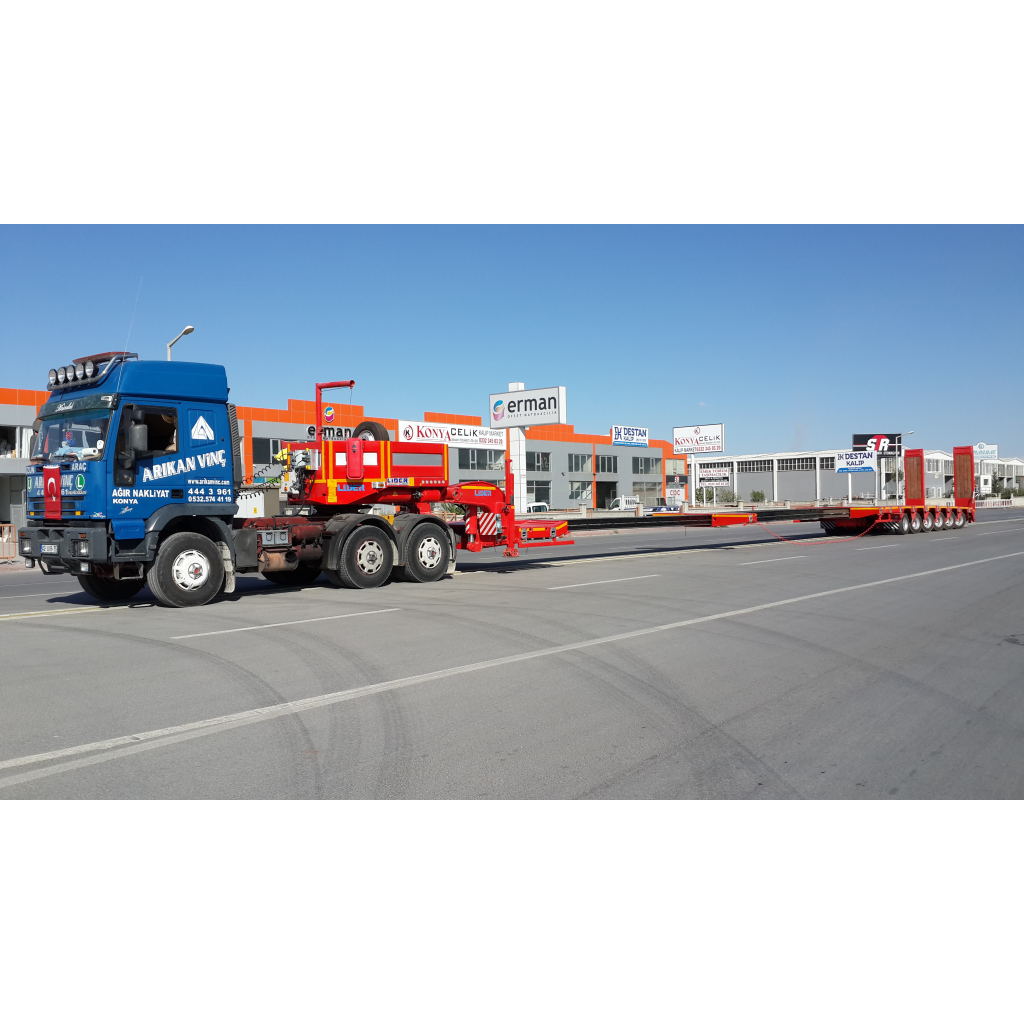

6 - axle lowbed trailers


Lider Trailer for manufacture all types of trailers and semi trailers in Turkey
Among our products  is 6 axle Lowbed semi trailers  .
We are ready for manuıfacture this trailers as per to customers request with high quality and best porice  .
Lowbed semi trailers is used for transport all types of special machinery and other heavy haulage .
inşaat üretim makineleri taşınmasında
  • mining machinery
  • heavy haulage
  • heavy machinery  (80 ton )
  • agricultral machinerys
  • special productions machinery
  • special types machinery
Also we have get a EUROPEAN quality certificate on our Lowbed semi trailers .

If you want to see our  8  axle lowbed semi trailers please visite our

The specifications for 6 axle Lolwbed semi trailers ( according to EUROPEAN standards ) ,


LOWBED TECHNICAL INFORMATION

  • Fifth whell Height (H5) : 1280 mm
  • External Length : : 14.500 mm
  • Axle Capacity : 12 ton Technical load capacity (10 ton legal load capacity)
  • Gooseneck Length (GL) : 3.660 mm
  • Platform Length (PL) : : 10.840 mm
  • Platform Height (PH) : 920 mm
  • Wheelbase (WB) : 9160 mm
  • Distance Between Axles : 1.350 mm
  • Loading capacity : 80.000 kgs
  • Tare Weight ±%3 :  : 15.500 kgs
  • Total Width (W) : 2.550 mm + 600 mm (w / side extensions)
  • King Pin Capacity : Permissible Load Capacity = 18.000 kg
  • Sliding Platform : 1 unit of non-removable sliding platform 300 mm long
  • Gross Vehicle Weight : Total Permissible Weight [60 km/h] = = 85.000 kgs
  • Gross Vehicle Weight : Total Permissible Weight [80 km/h] = 79.500 kgs

LOWBED RUNNING GEAR

  • Number Of  axle : 5 Units
  • Axles Steering : 3 units of fixed axles at the front, 2 units of self steering axles at the rear
  • Type Axles : Lider 1453 drum broke axles
  • Brake System: Dual circuit electro-pneumatic WABCO brand EBS 4S/3M brake system with anti- lock (ABS) and tilt control system (RSS) in compliance with Regulation UN ECE R13
  • Electric System : Lighting installation with 24 V LED side position lamp and 2x7 and 1x15-pin sockets, in compliance with Regulation UN ECE R48 and A DR Legislation
  • Rear Lamp Type : Front position lamp, left and right side parking lamps, operation lamp and extension label warning lamps on the vehicle are LED-Typ e , whereas rear underrun bumper lamps are Bulb-Type
  • Rim Brand :Lider Choice
  • Rim Type :Lider choice, steel offset rim
  • Tyre Size : 235/70 R 17,5
  • Tyre Brand : Pirelli Choice
  • Number of Tyres and : 12 Units
  •  Rims Spare Wheel Holder : 1 units of spare wheels on front panel (optional)
  • Suspansion Type : Air suspension
  • Connection Sockets :Socket with lid according to Norm VG-96917 and 2x35 mm2 straight connection cable with battery pincers according to Norm VG-96927-1 2

LOWBED CHASSIS

  • Chassis : Made of high quality and high strength ST52 and S700 MC steel, in compliance with Standard ISO 1726
  • Gooseneck Type : Gooseneck with 90° vertical corners
  •  Floor : 45 mm thick hardwood floor and drop-patterned steel floor only on top of wheels
  • Extension Bracket : Standard box profile
  • King Pin : 2" bolted kingpin
  • King Pin Place And Quantity : 1 unit of kingpin coupling seam
  • Front Landing Gear : Sliding mechanical landing gears with 50 ton capacity when parked
  •  Rear Landing : Sliding mechanical landing gears with 45 ton capacity when parked
  • Gear Metalization : Not Available


LOWBED RAMP

  • Ramp Type : 2 units of short mechanical ramps are included. Suitable for hydraulic folding and mechanical sliding operations, has hardwood covering with 4 0 m m thickness, 3,500 mm length and 800 mm width, 12 degrees of ramp angle, load capacity is 40,000 kg and 3,200 mm height in closed position
  • Rear Ramp Safety : Ramp safety tensioner chain

LOWBED LOAD SECURING


  • Lashing Rings : Lashing rings; on the gooseneck is 6 tonnes capacity 3 x 2 units; on the platform 6 tonnes capacity 4 x 2 units; on the side rave 6 tonnes capacity 9 x 2 units mounted.
  • Gooseneck Panels : 1 unit of steel side panel with dimensions 450 mm x 2,550 mm, 2 units of aluminium side panels with dimensions 360 mm x 1,500 mm, 1 unit of steel aluminium rear panel with dimensions 360 mm x 2,550 mm
  • Extension : Extension brackets; galvanized steel, 11 x 2 units of 300mm extendable with 100mm intervals or 230 mm  extendable in single action i s mounted
  • Bracket Pillars : ( optional )


LOWBED ACCESSORIES

  • Toolbox : 1 unit of double-doos steel steel toolbox with dimensions 750 x 400 x 360 mm (h x d x w)
  • Flashing Beacon Light : 1 units of flashing beacon light
  •  Extension Label Bracket : 2 x 2 units of 423 mm. x 423 mm. Extension Warning Plates with 2 LED position lights + 1 unit of Rear Flashing BeaconLight Socket
  • Extension board storage cabine : ( optional )
  •  Electric loading crane : ( optional )

LOWBED COLOURS

  • Chassis Color : costumer request RAL code
